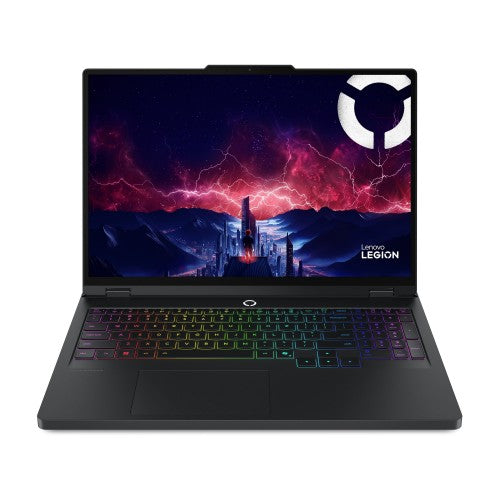

Lenovo Legion Pro 5 16AFR10 AMD Ryzen™ 9 9955HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 7 (802.11be) Windows 11 Home English Black

NB Lenovo Legion Pro 5 16AFR10 R9 32G 1T 11H

Key Features

• AMD Ryzen 9 9955HX (16C/32T, 2.5/5.4GHz, 16MB L2/64MB L3)
• 16" WQXGA (2560x1600) OLED 1100nits (peak) / 500nits (typical) Glossy 100% DCI-P3 165Hz DisplayHDR True Black 1000 Dolby Vision G-SYNC Free-Sync Premium Low Blue Light High Gaming Performance
• 2x 16GB SO-DIMM DDR5-5600
• 1TB SSD M.2 2280 PCIe 4.0x4 NVMe
• NVIDIA GeForce RTX 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS
• Windows 11 Home

Description

The Legion Pro 5 is built for rising esports stars, combining AMD Ryzen processor and NVIDIA GeForce RTX graphics along with AI Engine+ performance optimization. With Lenovo Coldfront cooling and a sleek, esports-focused design, it’s the smartest choice for gamers looking to rise fast in competitive play.

Apex Predator Gaming with AMD Ryzen
The AMD Ryzen 9000 HX Series processor lineup was born to game, with some of the most incredible gaming performance a laptop has ever seen. No need to waste time on the competition, this is the technology every gamer has been waiting for.

Next-Gen NVIDIA GeForce RTX Graphics
Experience a quantum leap in performance with ray tracing and AI-enhanced DLSS, designed for AAA and esports gaming.

Legion Coldfront: Hyper
A combination of turbo-charged fans and massive 3D copper heat pipes, all vacuum-sealed for improved airflow with air directed away from you, Legion Coldfront: Hyper allows you to push your system further while being quieter and cooler.

Lenovo PureSight OLED Gaming Display
Experience the OLED competitive edge to detect enemies in dim environments with industry-leading low latency and high refresh rate technology, all with breathtaking high-fidelity visuals and Smart Shift AI Technology for panel longevity.

Specifications

Design
Colour name	Eclipse Black
Product type	Laptop
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Form factor	Clamshell
Product colour	Black
Introduction year	2025
Introduction month	July
Display
HD type	WQXGA
Display surface	Gloss
Panel type	OLED
LED backlight	Yes
Display brightness	500 cd/m²
Touchscreen	No
Display resolution	2560 x 1600 pixels
Display diagonal	40.6 cm (16")
Maximum refresh rate	165 Hz
RGB colour space	DCI-P3
High Dynamic Range (HDR) technology	Dolby Vision
Colour gamut	100%
Native aspect ratio	16:10
High Dynamic Range (HDR) supported	Yes
Processor
Processor cache	64 MB
Processor frequency	2.5 GHz
Processor model	9955HX
Processor boost frequency	5.4 GHz
Processor cores	16
Processor threads	32
Motherboard chipset	AMD SoC
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 9
Memory
Memory form factor	SO-DIMM
Internal memory	32 GB
Memory layout (slots x size)	2 x 16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total storage capacity	1 TB
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	8 GB
On-board graphics card family	AMD Radeon
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 610M
Discrete graphics card model	NVIDIA GeForce RTX 5070
Discrete graphics memory type	GDDR7
Discrete GPU manufacturer	NVIDIA
NVIDIA Max-Q	Yes
On-board GPU manufacturer	AMD
Audio
Audio chip	Realtek ALC3306
Number of microphones	2
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB Sleep-and-Charge	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
USB 3.2 Gen 2x2 Type-C ports quantity	0
Thunderbolt 4 ports quantity	1
USB4 Gen 2x2 ports quantity	0
USB4 Gen 3x2 ports quantity	0
Performance
Virtual Reality (VR) ready	Yes
Motherboard chipset	AMD SoC

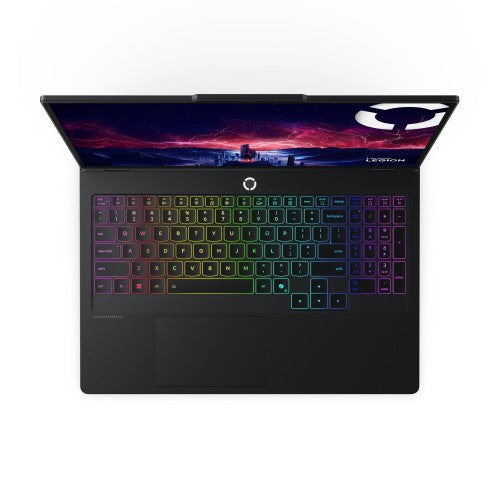

Keyboard
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard backlit	Yes
Keyboard language	English
Keyboard backlit colour	RGB
Keyboard backlit zone	24-zone RGB
Copilot key	Yes
Software
Operating system language	English
Operating system architecture	64-bit
Trial software	Office
Operating system installed	Windows 11 Home
Technical details
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Form factor	Clamshell
Product colour	Black
Discrete graphics card memory	8 GB
Warranty period	1 year(s)
Battery
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	80 Wh
Fast charging	Yes
Power
AC adapter power	245 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Trusted Platform Module (TPM)	Yes
Fingerprint reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	RoHS
Weight & dimensions
Width	364.4 mm
Depth	268.1 mm
Height (front)	2.17 cm
Height (rear)	2.6 cm
Weight	2.5 kg
Packaging data
Package weight	4.18 kg
Package width	541 mm
Package height	83 mm
Package depth	342 mm
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card	Yes
AC adapter included	Yes
Warranty period	1 year(s)
