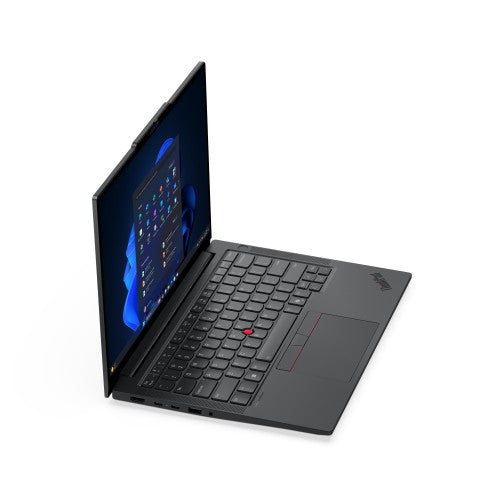

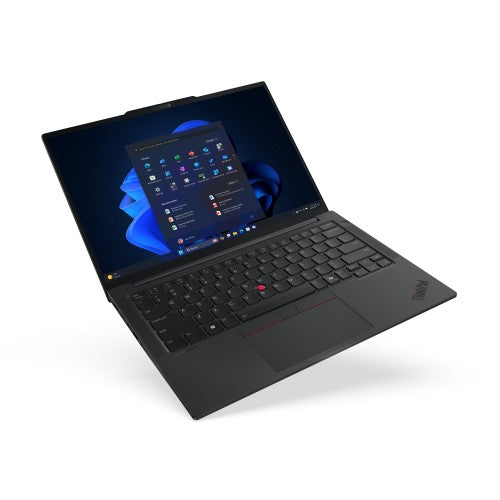

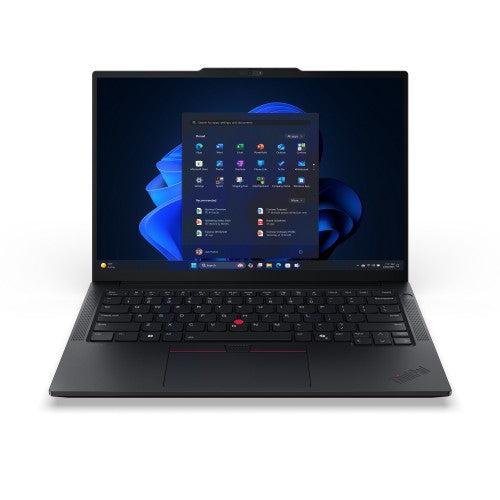

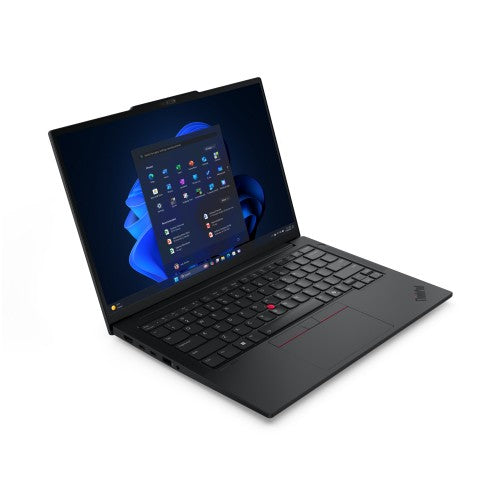

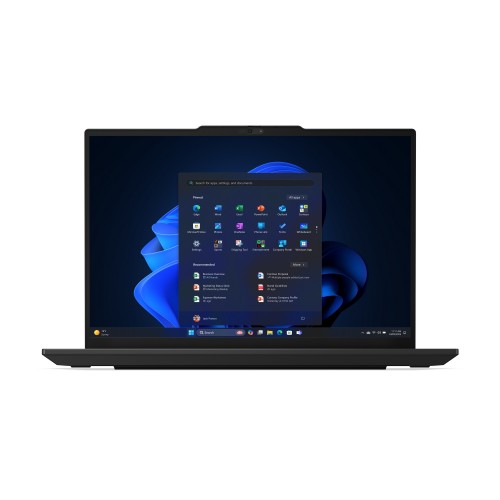

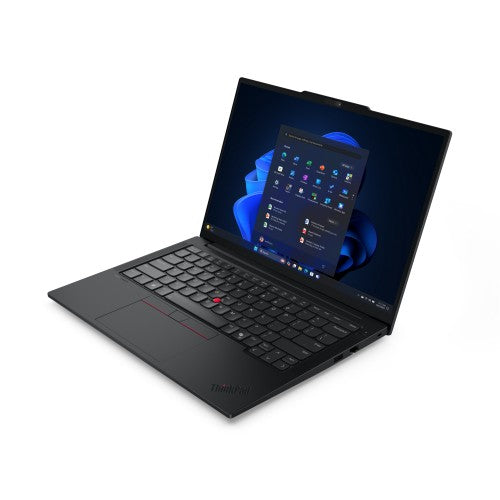

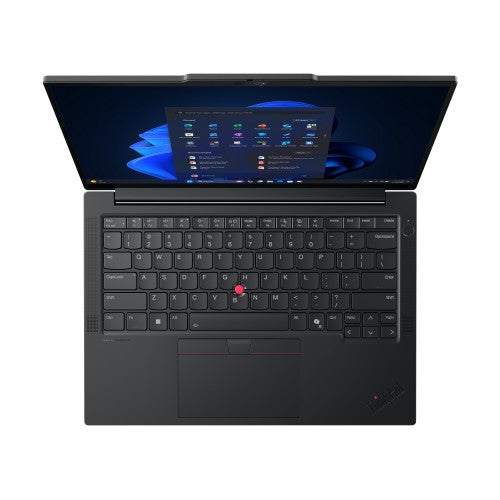

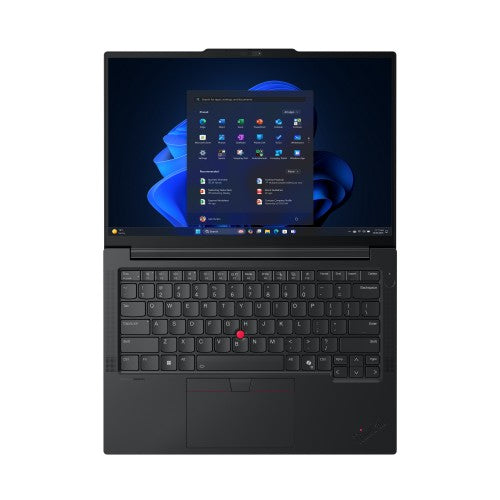

Lenovo ThinkPad E14 Gen 7 (AMD) AMD Ryzen™ 5 230 Laptop 35.6 cm (14") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro English Black

AMD Ryzen 5 230 (6C/12T, 3.5/4.9GHz, 6MB L2/16MB L3), 1x 16GB SO-DIMM DDR5-5600, 512GB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0, 14" WUXGA (1920x1200) IPS 300nits 45% NTSC 60Hz, AMD Radeon 760M Graphics, Wi-Fi 6E 802.11ax 2x2 + BT5.3, FHD 1080p + IR Hybrid with Privacy Shutter, Windows 11 Pro

Key Features

• AMD Ryzen 5 230 (6C/12T, 3.5/4.9GHz, 6MB L2/16MB L3)
• 14" WUXGA (1920x1200) IPS 300nits 45% NTSC 60Hz
• 1x 16GB SO-DIMM DDR5-5600
• 512GB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0
• AMD Radeon 760M Graphics
• Windows 11 Pro

Description

Specifications

Design
Product type	Laptop
Housing material	Aluminium
Form factor	Clamshell
Product colour	Black
Display
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Display brightness	300 cd/m²
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	35.6 cm (14")
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor cache type	L3
Processor cache	16 MB
Processor frequency	3.5 GHz
Processor model	230
Processor boost frequency	4.9 GHz
Processor cores	6
Processor threads	12
Motherboard chipset	AMD SoC
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Neural processor unit (NPU)
Neural processor unit (NPU)	AMD Ryzen AI
NPU performance up to	16 TOPs
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	AMD Radeon
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 760M
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
Audio
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Near Field Communication (NFC)	No
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB Sleep-and-Charge	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
USB4 Gen 3x2 ports quantity	1
Performance
Motherboard chipset	AMD SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Technical details
Housing material	Aluminium
Form factor	Clamshell
Product colour	Black
Battery
Battery capacity	64 Wh
Power
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Fingerprint reader	Yes
Cable lock slot	Yes
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Certificates
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight & dimensions
Width	313 mm
Depth	220.3 mm
Height (front)	1.01 cm
Height (rear)	1.52 cm
Weight	1.41 kg
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card	Yes
AC adapter included	Yes
Anti-glare screen	Yes
