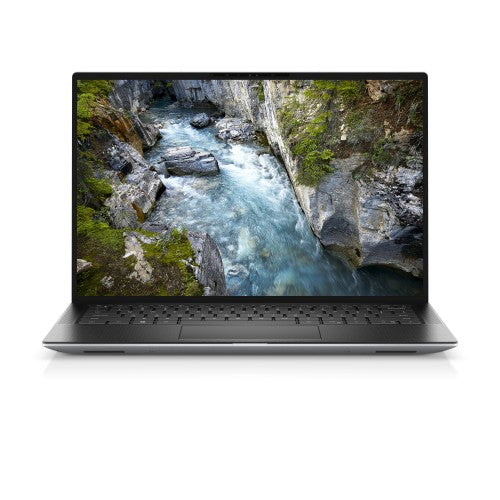

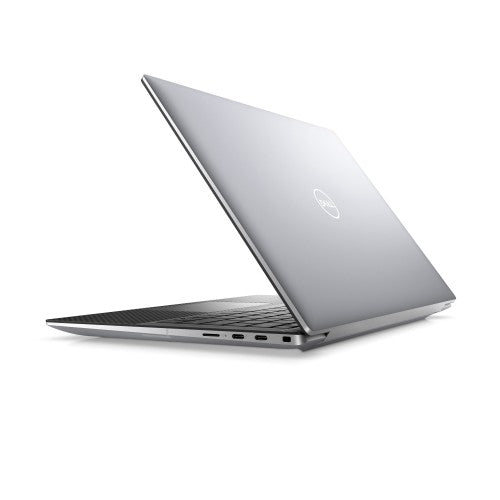

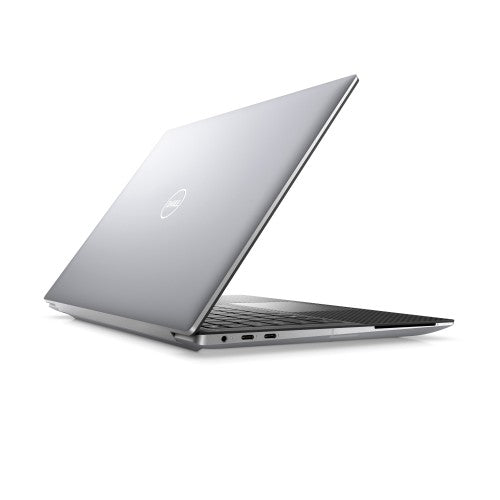

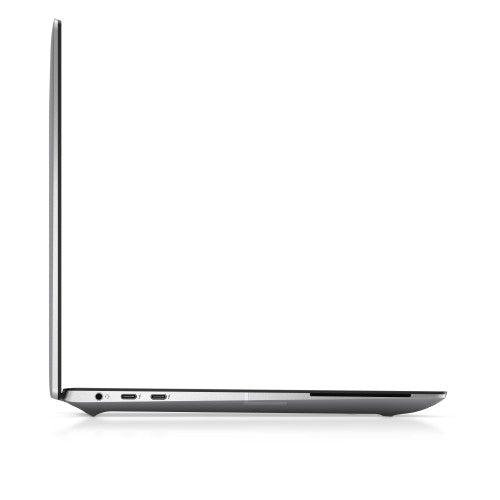

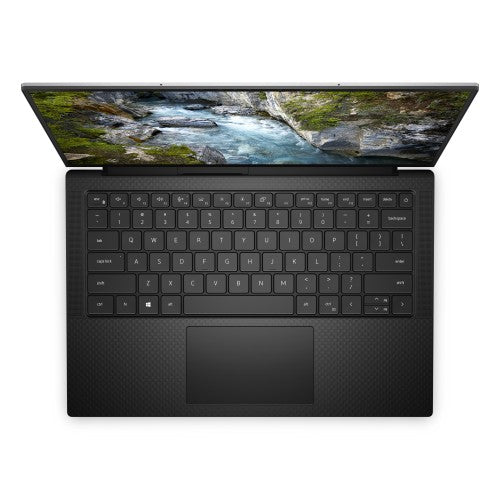

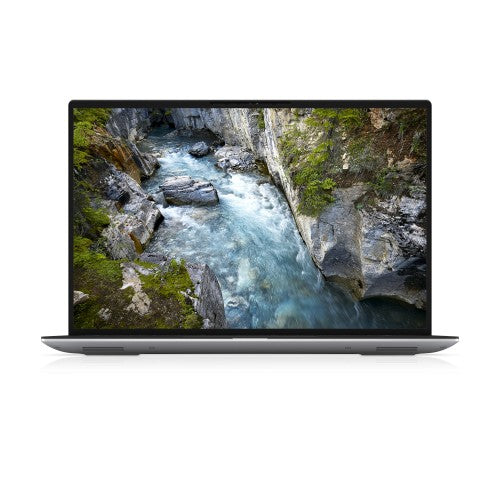

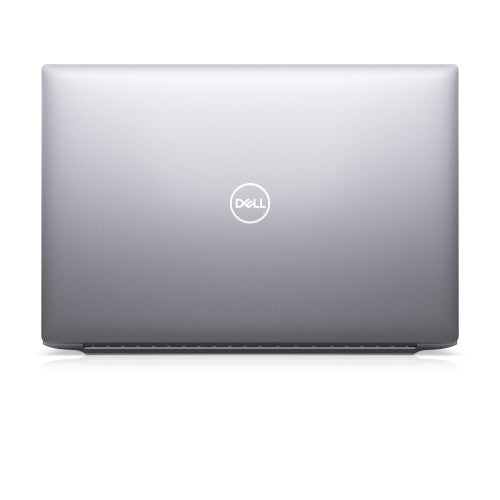

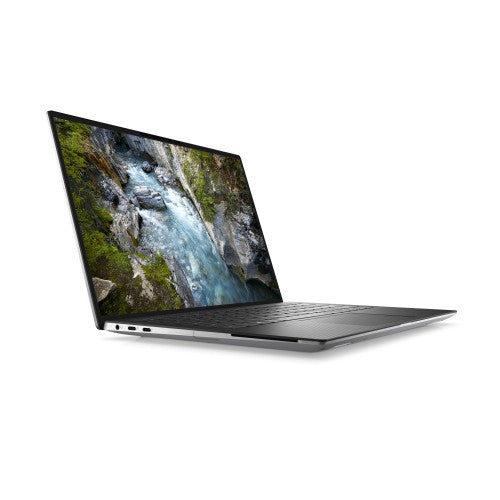

DELL Precision 5470 Intel® Core™ i7 i7-12800H Mobile workstation 35.6 cm (14") Full HD+ 16 GB LPDDR5-SDRAM 512 GB SSD NVIDIA RTX A1000 Wi-Fi 6E (802.11ax) Windows 10 Pro Grey

Intel Core i7-12800H (24MB Cache), 16GB LPDDR5-SDRAM, 512GB SSD, 35.6 cm (14") Full HD+ 1920 x 1200 WLED, Intel Iris Xe Graphics, NVIDIA RTX A1000 (4GB GDDR6), WLAN, Webcam, Windows 10 Pro 64-bit

Key Features

• Windows 10 Pro 64-bit
• Intel Core i7-12800H (24MB Cache)
• 35.6 cm (14") Full HD+ 1920 x 1200 WLED, NVIDIA RTX A1000 (4GB GDDR6)
• 16GB (5200MHz) LPDDR5-SDRAM & 512GB SSD

Reasons To Buy

Displays optimal screen design

With PremierColor and ComfortView Plus capability on the 14", 16:10 QHD+ 4-sided InfinityEdge display (approximately 91% screen to body ratio).

Promotes productivity

Using our first Intel professional graphic card with power sharing capabilities between the CPU and GPU as well as integrated Intel Iris Xe graphics.

Provides hands-on production

With the optional Touch and Active Pen, large clickpad and backlit keyboard.

Powers through the project

Thanks to a 72Whr battery with ExpressCharge capabilities. Long life cycle battery available.

Spotlights your genius

With the Windows Hello-compatible IR camera that has proximity and ambient light sensors.

Puts the awe in audio

With dual mics and four speakers with Intelligent Audio.

Impressive performance for constant creativity

Spur your creativity with features that allow you to create without interruption.
Up to Intel Core i9 processors and 14 core (6P+8E) | Optional professional Intel graphics or NVIDIA RTX graphics.
Advanced thermals feature dual opposing output fans.
Up to 4TB of storage | 64GB of 5200MHz DDR5 memory.

Dell Optimizer for Precision

Our built-in AI platform learns how you work and adapts to create a smarter, more personalized experience. We make it intelligent. You make it yours.

Intelligent Privacy:
Keeps sensitive data private by texturizing and turning on SafeScreen when an onlooker is detected and dims the PC when you look away.

Express Connect:
Automatically connects you to the best network and delivers unmatched connectivity with the world’s first simultaneous multi-network connection.

Analytics:
Generates end-user reports and analyze your system for personalized insights.

Independent Software Vendor (ISV) certification

Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV-certifications cover the most popular independent software applications.

Premium Panel Guarantee
The Dell Premium Panel Guarantee allows a free panel replacement during the Limited Hardware Warranty period even if only one bright pixel is found.

Design and create your masterpieces

Built for design and creative applications like:

Design – 2D, 3D CAD
Graphic design, video and photo editing, animation
Education
Financial analysis
Application development
Architecture
Interior and exterior design

Security you can count on

The Windows Hello-compatible IR Camera
with proximity sensor recognizes you and automatically locks and unlocks to increase privacy and productivity.

The fingerprint reader
built into the power button uses biometrics to log you in quickly and ensures that only you have access to your sensitive data and private work.

Chassis Intrusion Sensor
identifies when the chassis or BIOS have been compromised.

Description

Power your creative zone
14" mobile workstation featuring 4-sided InfinityEdge display, up to 12 Gen Intel® Core™ i9 and professional graphics from Intel or NVIDIA.

Specifications

Design
Product type	Mobile workstation
Market positioning	Business
Form factor	Clamshell
Product colour	Grey
Intel® vPro™ Platform Eligibility	Yes
Display
HD type	Full HD+
Pixel density	161 ppi
Panel type	WLED
LED backlight	Yes
Display brightness	500 cd/m²
Display response rise/fall	35 ms
Pixel pitch	0.1572 x 0.1572 mm
Contrast ratio (typical)	1200:1
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	35.6 cm (14")
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	12th gen Intel® Core™ i7
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Processor cache	24 MB
Processor model	i7-12800H
Processor boost frequency	4.8 GHz
Processor cores	14
Processor threads	20
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Memory
Memory form factor	On-board
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory clock speed	5200 MHz
Maximum internal memory	16 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SDXC, SD, SDHC
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	4 GB
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	NVIDIA RTX A1000
Discrete graphics memory type	GDDR6
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Audio
Number of microphones	2
Number of built-in speakers	4
Speaker power	8 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Wi-Fi data rate (max)	2400 Mbit/s
MIMO	Yes
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	0
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	4
Intel® Thunderbolt 4	Yes
Performance
Ambient light sensor	Yes
Accelerometer	Yes
Keyboard
Pointing device	Touchpad
Numeric keypad	No
Keyboard backlit	Yes
Keyboard language	UK English
Software
Operating system language	German, Dutch, English, French, Italian
Operating system architecture	64-bit
Trial software	No Microsoft Office License Included 30 day Trial Offer Only
Operating system installed	Windows 10 Pro
Windows 11 free upgrade	Yes
Technical details
Market positioning	Business
Form factor	Clamshell
Product colour	Grey
Discrete graphics card memory	4 GB
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Flex Memory Access	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	72 Wh
Battery recharge time	4 h
Battery voltage	15.4 V
Fast charging	Yes
Battery weight	285 g
Power
AC adapter power	130 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB charging voltage	20,5 V
USB charging current	6.5 A
USB Type-C charging port	Yes
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Cable lock slot	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G
Weight & dimensions
Width	310.6 mm
Depth	210.3 mm
Height (front)	7.49 mm
Height (rear)	1.11 cm
Weight	1.48 kg
Other features
Wi-Fi data rate (max)	2400 Mbit/s
Ambient light sensor	Yes
WLAN controller model	Intel Wi-Fi 6E AX211
On-board graphics card	Yes
Anti-glare screen	Yes
Sensors
Ambient light sensor	Yes
Accelerometer	Yes
