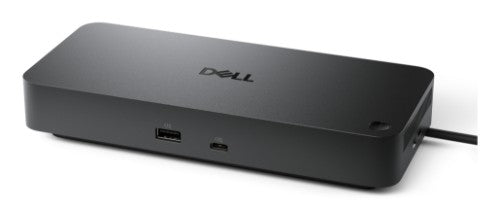

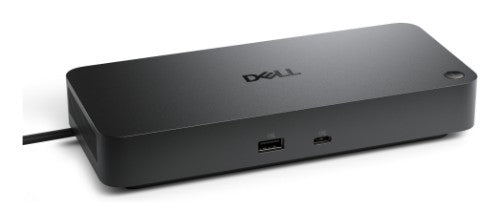

DELL WD25TB5 Wired Thunderbolt 5 Black

Pro Thunderbolt 5 Dock - WD25TB5

Reasons To Buy

Power AI productivity

Maximise AI PC productivity with the industry’s most powerful Thunderbolt 5 dock and seamlessly run Gen AI tools across up to four 4K 120Hz displays. Featuring Extended Power Range, deliver up to 300W over a single USB-C cable to power even the highest-performance AI PCs, while modern ports ensure broad connectivity.

Accelerate manageability

Delivering ultimate IT efficiency across the modern workspace.

Improved manageability

Manage your dock through the Dell Device Management Console, using the Dell Display and Peripheral Manager along with the Dell Device Management Agent installed on your PC.

Simplify firmware updates

Reduce IT complexity by deploying a single firmware file across workspaces. Minimise end-user disruption with silent firmware updates, executed upon dock disconnection.

Unlock out-of-band management on select Intel® vPro® PCs with Intel® Active Management Technology (Intel® AMT) over Thunderbolt via the connected dock.

Work with confidence

Enhance your docking experience across brands with universally compatible features including MAC Address Pass-Through and Power Button Sync.

Connect your way

Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.

Improved sustainability

The new generation of Dell Pro Docks reflect a commitment to sustainable design innovation to reduce environmental impact. The WD25TB5 is built with sustainable materials and packaged with at least 65% post-recycled content (PCR) plastic and 100% recycled or renewable packaging.

Description

Conquer intense workloads with the most powerful Thunderbolt 5 Dock, and with up to 300W power delivery.

Specifications

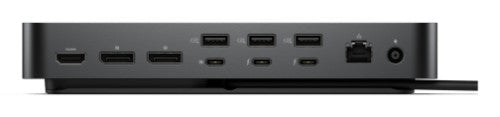

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	Thunderbolt 5
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
DisplayPort version	2.1
Thunderbolt 5 ports quantity	2
Network
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	6144 x 3456 pixels
Number of displays supported	4
On/off switch	Yes
Product colour	Black
Card reader integrated	No
LED indicators	Yes
Data transfer rate	1.25 Gbit/s
Cable lock slot type	Kensington
Maximum refresh rate	120 Hz
Technical details
Product colour	Black
Data transfer rate	1.25 Gbit/s
Storage
Card reader integrated	No
Power
Power source type	DC
Power supply	330 W
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Yes
Linux operating systems supported	Ubuntu 24.04 LTS
Other operating systems supported	ChromeOS
Indication
LED indicators	Yes
Weight & dimensions
Weight	620 g
Width	90 mm
Depth	35.3 mm
Height	205 mm
Design
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Yes
Product colour	Black
LED indicators	Yes
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quick start guide	Yes
Cables included	AC
AC adapter included	Yes
Quantity per pack	1 pc(s)
